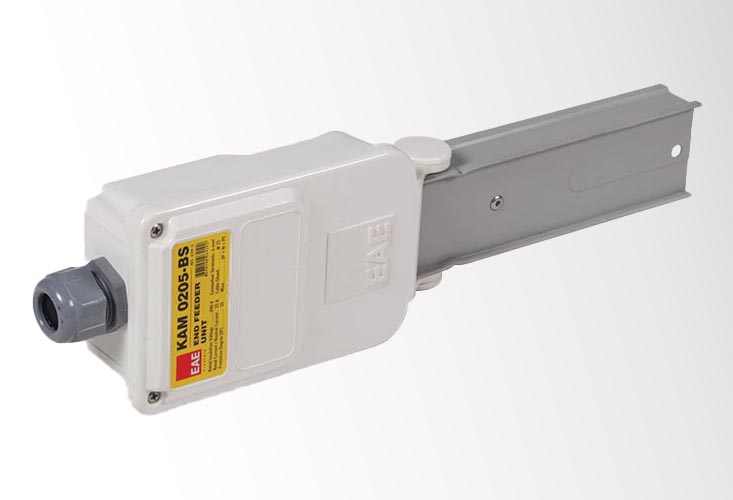

E-Line KAM Busbar

Lighting Busbar (25A up to 32A)
E-Line KAM Series Lighting Busbar Systems has been designed to supply lighting fixtures with electrical current. It can be used to supply power to industrial, decorative or alternate lighting fixtures.

Catalogs

General Information
General Features

Housing

Sheet metal (Optionally, RAL 7038 epoxy polyester electrostatic powder coated)

Conductors

Full-length tin-plated copper conductor

Insulations

Flame-proof and halogen-free plastic materials.

Low Power Distribution

Fast and safe solutions for power requirements up to 63 A max, in factories and workshops. Tap off boxes that can be used with a miniature circuit breaker (MCB) or a residual current circuit breaker (RCDBO) up to 32 A.

Tap off Plugs and Boxes
  • Single and 3 phase output plugs with cartridge (cylindrical) fuses and electric terminals.
  • 3-phase tap off boxes suitable for use with Cartridge (cylindrical) Fuses and Miniature Circuit Breakers (MCB) up to 32 A.
  • The covers of the E-Line KAM/KAP outlet plugs are designed in various colours which allows the technician to comfortably notice whichever phase the fixture is being supplied with.
Usage Areas
  • Production and storage areas in factories
  • Workshops
  • Garment facilities
  • Car Parking Areas
  • In the suspended ceilings in the offices
  • Logistic storehouses
  • Hypermarkets
  • Shopping centers

Technical Information

Technical Features
KAM Busbar Technical Features
  • 25A or 32A current stage
  • KAM 25-32A Lighting Busbar Trunking
  • IP55 protection class
  • Standard 2, 3, 4 or 5-conductor
  • Copper conductors are full-length tin-plated and full-length insulated
  • One plug-in output point at standard 75cm intervals
  • 10A 0,75m-cabled single-phase plugs without fuse
  • 16A Single-phase plugs with connector, fitted with cartridge fuse or without a fuse
  • 16A Three-phase plugs with connector, without a fuse
Conductor Configuration
  • 2 Conductors (L2/N/ PE Housing)
  • 3 Conductors (L2/N/PE/ PE Housing)
  • 4 Conductors (L1/L2/L3/N/ PE Housing)
  • 5 Conductors (L1/L2/L3/N/PE/ PE Housing)
Conductor Material and Rated Currents
KAM
  • Copper Conductor 25A/32A
