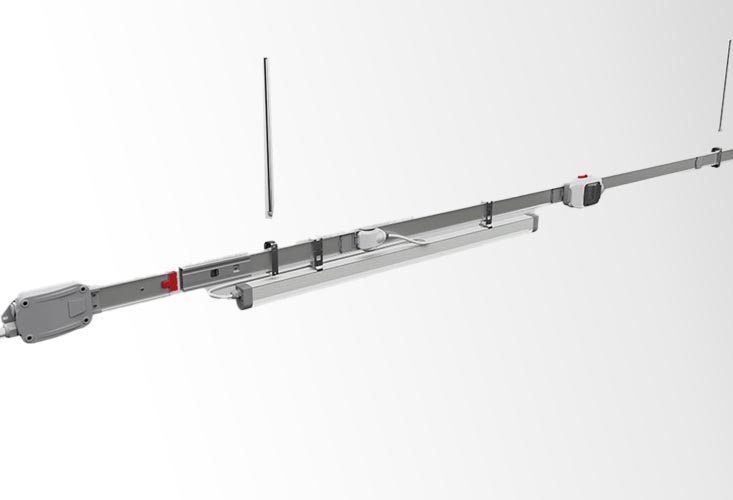

KY-S Lighting Busbar Advantages and Features
  • Copper conductor with a current rating of 25A
  • On the inside of the busbar housing, there are a different number of conductor options of up to 6 conductors per side
  • If requested, RAL 7038 electrostatic oven dried busbar housing on the galvanized sheet are available
  • There are 3 output windows on one side of a standard 3 meter length busbar, as well as 4 output windows on one side of a 4 meter length busbar and 1 output window on one side of a 1 meter length busbar
  • Slider type joint cap at joint points on the busbar can ease the montage process without the need of screws or any other hand tools
  • It is completely coated with non-flame propagating isolation material on tin-plated copper conductors
  • Has a structure to minimize current resistance at joint points and bars overheating at contact points with its silver plated spring contacts

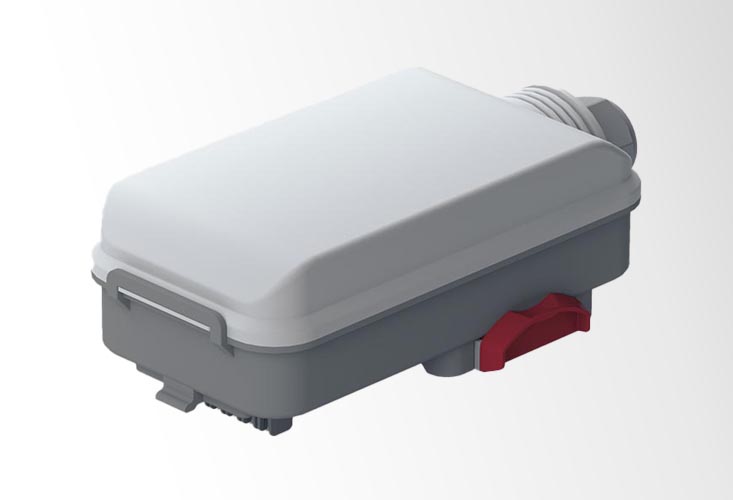

  • Tap-off plugs that has various colours depending on phases with a special lock mechanism
  • Tap-off plugs and boxes are designed to prevent misuse and shock by electricity, utilizing different addressing structures
  • Various colours have been utilized on tap-off plugs and boxes which is located on the cap, housing and cable entry point connectors, to make it clear to notice phase, function and features
  • It is compatible to use in all types of indoor ceilings, wall and colon applications with flexible turn modules and attachments
  • It has CPE grounding option
  • IP55 protection class
Usage Areas
  • Small businesses
  • Local production areas
  • Workshops
  • Textile Facilities
  • Automotive facilities
  • Automotive sub-industries
  • Small-sized industry facilities
  • Malls
  • Data Centres
  • Supermarkets
