E-Line CCR Busbar

IP68 Aluminium Housing Cast Resin Busbar (600A…6300A)

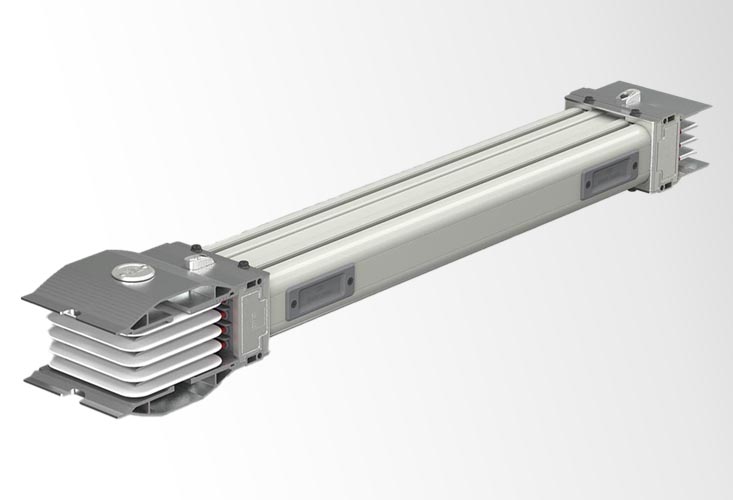

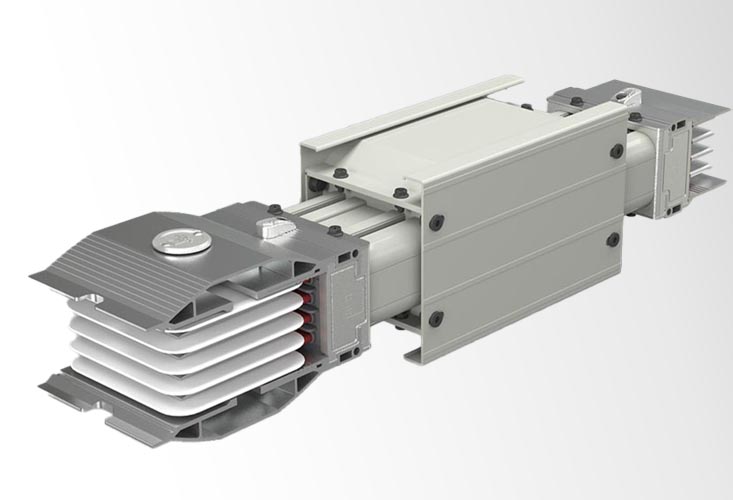

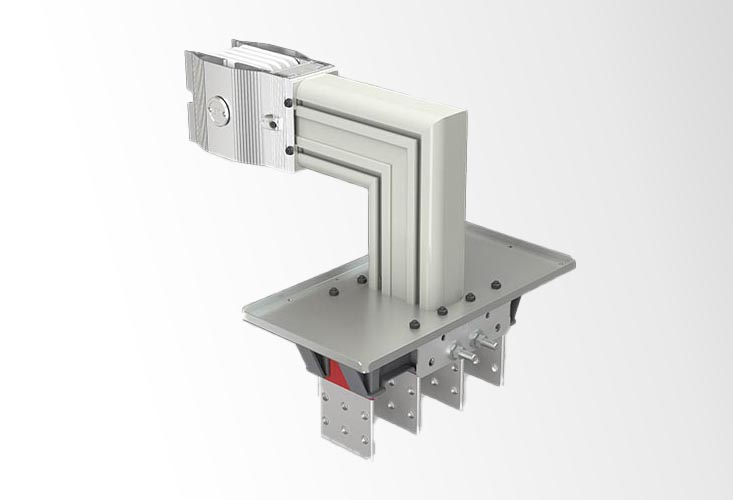

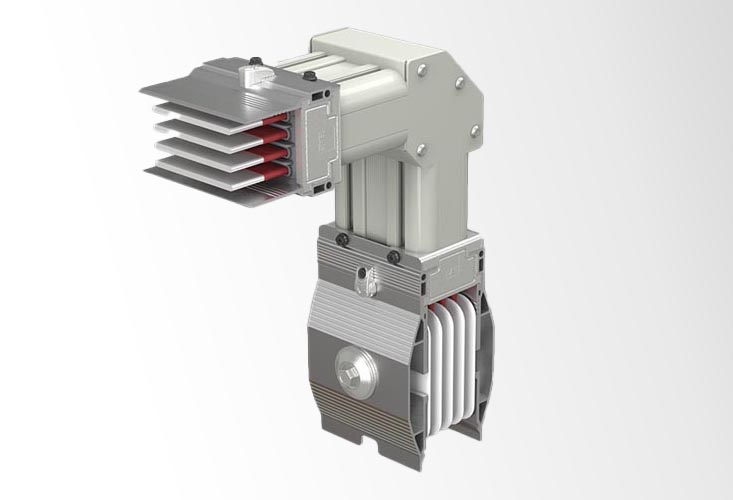

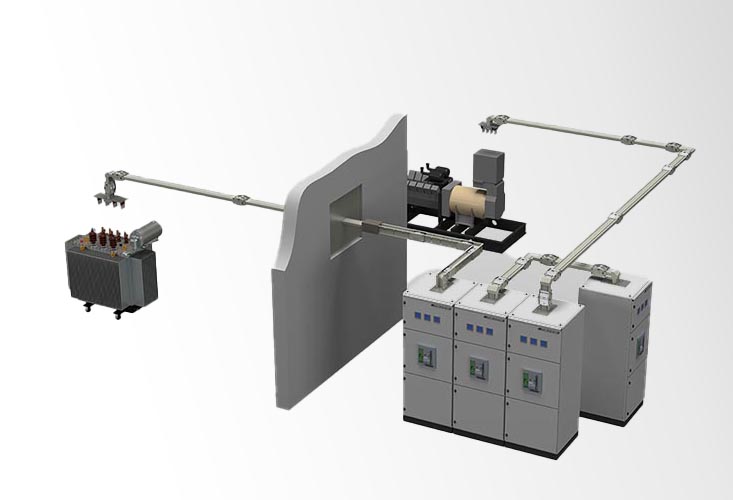

Carrying high currents (transformer to switchboards, main distribution lines, power distribution for factories) using “Cast Resin Busbars” in outdoor environments, gallery transitions, chemical plants, harbour applications, tunnels instead of cables that are applied as mandatory offers many advantages. Aluminium housing covers the “DUROCOMP” composite material that is manufactured from specially selected pure silicium minerals and epoxy resin and has superior temperature and mechanical operation features and insulates the E-Line CCR Busbar from external elements.

Catalogs

General Information
General Features

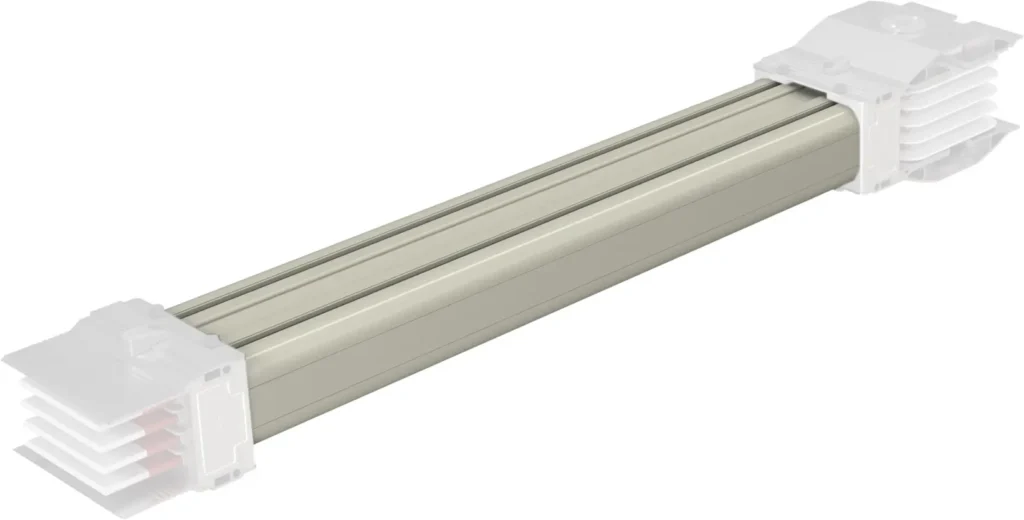

Housing

Aluminium housing over composite material that is made by specially selected pure silicium minerals and epoxy resin

Conductors

Full-length tin-plated aluminium and copper conductor

Insulations

Epoxy coated on conductors

Advantages of CCR Busbar
Using Cast Resin bars in outdoor environments, gallery transitions, chemical plants, harbour applications and tunnels, instead of cables that are applied as mandatory, provides synthesis with many advantages. Thanks to the superior heat transfer additives used in the Busbar system, the heat generated in conductors is easily transmitted into the environment through the housing.
  • Complies with 61439-6 standards
  • Outdoor IP 68 level protection
  • Corrosion-resistant
  • Resistant against chemicals
  • May be used in tropical environments
  • Superior mechanical endurance
  • Avoids the stack effect
  • Superior resistance to short-circuit
  • Resistant to flame expansion
  • Could operate during fire
  • Compatible with E-Line KX modules
Usage Areas
  • Galleries between Transformer and Panel
  • Oil and Gas Plants
  • Nuclear Plants
  • Cement Plants
  • Power Plants
  • Harbors and Shipyards
  • Food Premises
  • Tunnels and Underpasses

Technical Information

Conductor Configuration

Aluminium and Copper Conductor:
  • 3 Conductor (L1/L2/L3)
  • 4 Conductor (L1/L2/L3/N)
  • 4 ½ Conductor (L1/L2/L3/N/ ½ CPE) – Clean Earth
  • 5 Conductor (L1/L2/L3/N/CPE) – Clean Earth
Conductor Material and Rated Currents
E-Line CR Busbar

Aluminium Conductor:
600A / 800A / 1250A / 1600A / 2000A / 2500A / 3000A / 3300A / 3600A / 4000A / 4500A / 5000A / 5400A

Copper Conductor:
650A / 850A / 1000A / 1250A / 1600A / 2000A / 2500A / 3200A / 3400A / 4000A / 4500A / 5000A / 5750A / 6300A
