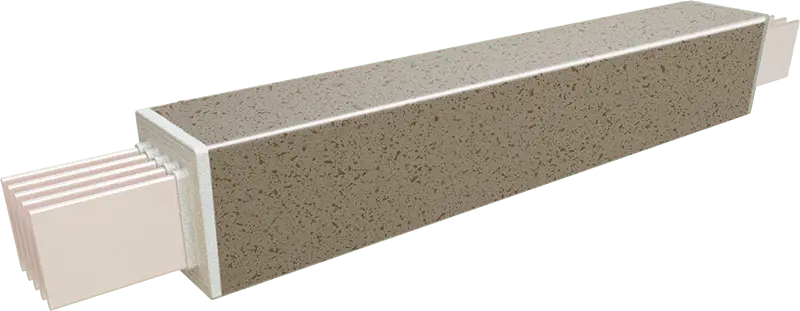

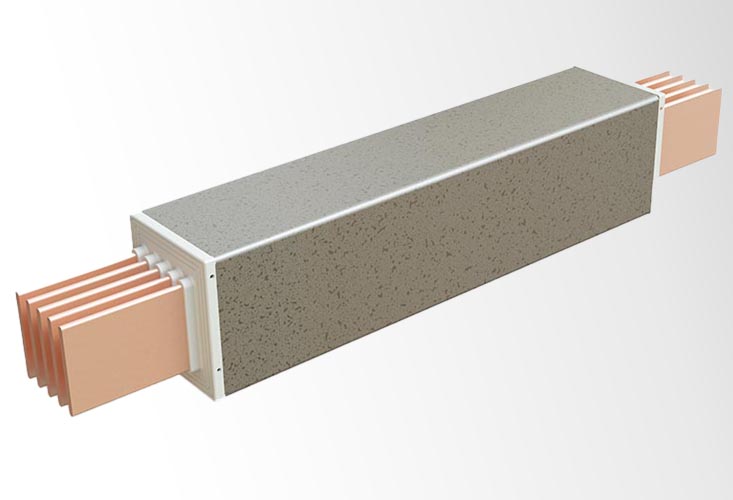

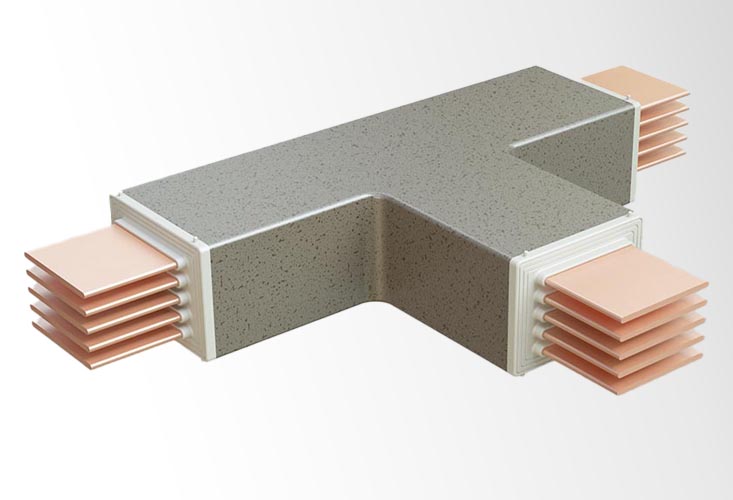

Advantages of E-Line CR
Using “Cast Resin Busbars” in outdoor environments, gallery transitions, chemical plants, harbor applications, tunnels instead of cables that are applied as mandatory offers many advantages. The heat forming in conductors due to additives with high heat transfer capability used in the busbar system is easily transferred to the medium via the body.
- IP68 and IP69k protection class
- Exterior environment IP 68 protection class
- 3, 4, 4.5, 5 and 6 conductor options
- Corrosion-resistant
- Clean earth option
- Chemical-resistant
- IEC 60331-1: 3 hours of continuous current under fire condition
- Pest-resistant
- Conformance to seismic requirements in accordance with IEC 60068-3-3; IEC 60068-2-57 and IEEE 693 standards
- Usable in tropical environments
- 3 hours of fire barrier resistance in accordance with ISO 834
- Has high mechanical strength
- E60 and E120 current continuance under fire condition in accordance with DIN 4102-12
- Without stack effect
- Highly resistant to short circuit
- Fire-resistant
- ATEX protection class
- Current continuity under fire conditions
- Compatible with E-Line KX modules
Applications E-Line CR
- Galleries between Transformer and Panel
- Oil and Gas Plants
- Nuclear Plants
- Cement Plants
- Power Plants
- Harbors and Shipyards
- Food Premises
- Tunnels and Underpasses
