E-Line KAP Busbar

Power Busbar (40A-63A)

E-Line KAP Series Busbar Systems provide an easy, simple, fast, and safe solution for electrical energy distribution and lighting circuits in areas where low-power machines and devices are used, such as factories and workshops.

Catalogs

General Information

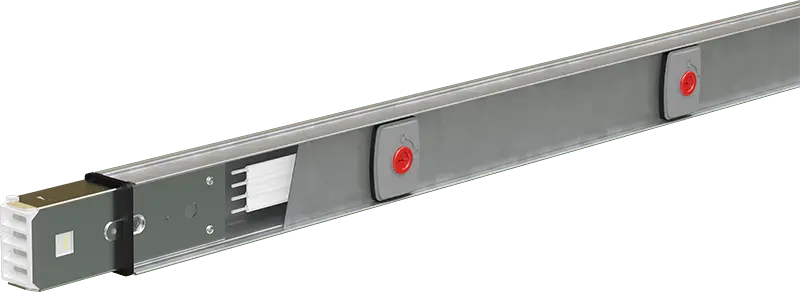

Housing

Sheet metal (Optionally, RAL 7038 epoxy polyester electrostatic powder coated)

Conductors

Full-length tin-plated copper conductor

Insulations

Flame-proof and halogen-free plastic materials.

Small Power Distribution

A fast and safe solution for power requirements up to 63A max Ideal for factories and workshops. Tap off boxes that can be used with a miniature circuit breaker (MCB) or a residual current circuit breaker (RCDBO) up to 32 A.

Tap-Off Plugs and Tap-Off Boxes

Cylindrical fuse-equipped and terminal-equipped single phase and three phase tap-off plugs.
Three phase tap-off boxes compatible with Cylindrical Fuses and Miniature Circuit Breakers (MCBs) up to 32A.
The covers of E-Line KAM/KAP tap-off plugs are designed in different colors, allowing easy identification of the phase powering the fixture.

E-Line KAP Applications

Production and storage areas in factories
Workshops
Garment facilities
Car Parking Areas
In the suspended ceilings in the offices
Logistic storehouses
Hypermarkets
Shopping centers

Technical Information

KAP Busbar Technical Features

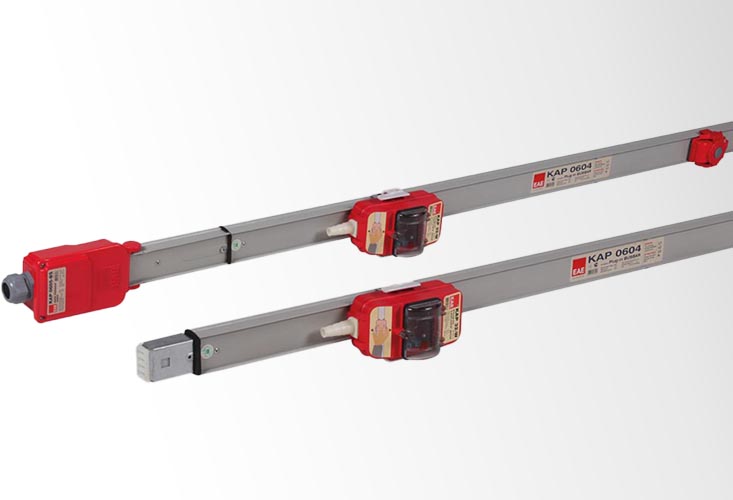

KAP 40-63A Plug-in Busbar System
IP55 protection class
Standard options with 2, 3, 4, or 5 conductors
Copper conductors fully tin-plated and fully insulated
Standard plug-in point every 75 cm
0.75m cable unfused single phase tap-off plugs, 10A
Terminal-equipped fuse or unfused single phase tap-off plugs, 16A
Terminal-equipped unfused three phase tap-off plugs, 16A

Conductor Configuration

2 Conductor (L2/N/ PE Housing)
3 Conductor (L2/N/PE/ PE Housing)
4 Conductor (L1/L2/L3/N/ PE Housing)
5 Conductor (L1/L2/L3/N/PE/ PE Housing)

Conductor Material and Rated Current

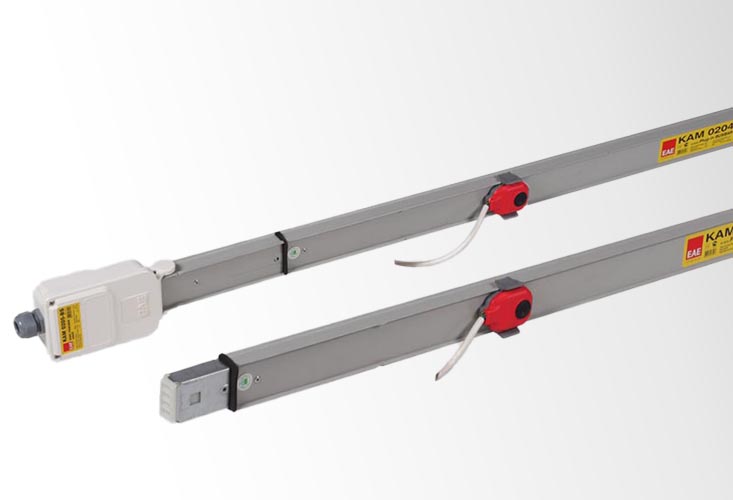

KAM

Copper Conductor 25A/32A

KAP

Copper Conductor 40A / 63A
