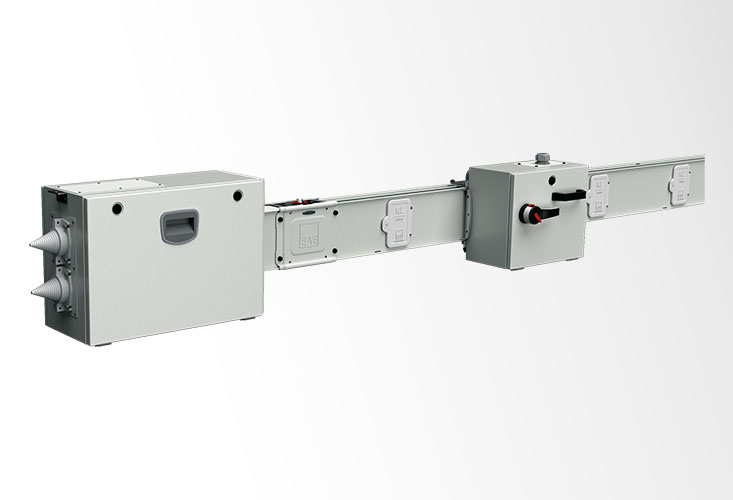

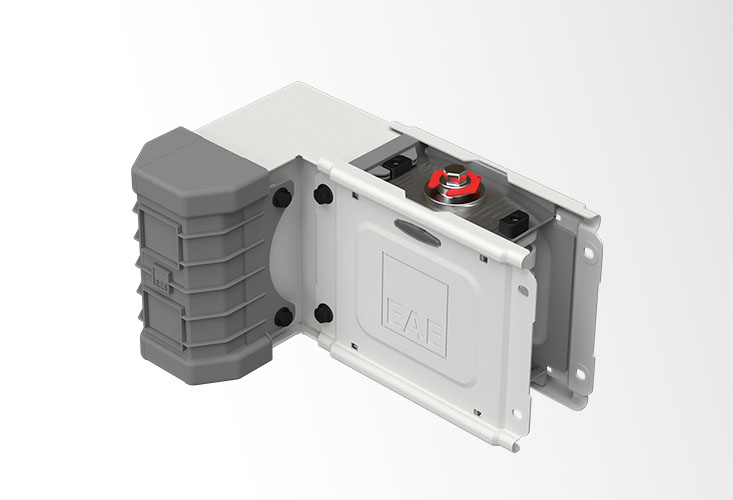

E-Line KL Busbar
E-Line KL Series Busbar Systems are designed as another product within the “E-Line Busbar Product Group” for use in medium-sized buildings or industrial facilities. It can be used as a horizontal or vertical electrical distribution line anywhere there is a need for energy distribution, within the range of 160A to 1250A.
They offer significant cost savings by using switchable metal boxes tailored to specific needs or plastic boxes that are suitable for MCB switches in lower current applications.
Catalogs
Housing
Sheet metal (RAL 7038 epoxy polyester electrostatic powder coated)
Conductors
Full-length tin-plated Aluminium or Copper
Insulations
Plastic protection at certain distances between air segregated conductors
- IP55 protection degree
- Aluminum or copper conductors
- Tin plated aluminium or copper conductors
- 4 or 5 conductors
- Plug-in tap off outlets at every 50 cm on both sides as standard
- Clean earth option
- Production areas in factories
- Textile facilities
- Furniture facilities
- Automotive factories
- Automotive sub-industry
- Shopping malls
- Exhibition centres
- High-rise buildings
- Hotels
- Hospitals
- Business Centres
- Data Center
Technical Information
Conductor Configuration
- 4 Conductors (L1/L2/L3/N/ PE Housing)
- 5 Conductors (L1/L2/L3/N/ PE / PE Housing)
- 5 Conductors (L1/L2/L3/N/ ½ CPE / PE Housing) – Clean Earth
Conductor Material and Rated Currents
Aluminum Conductor:
160A / 250A / 315A / 400A / 500A / 630A / 800A / 1000A
Copper Conductor:
250A / 315A / 400A / 500A / 630A / 800A / 1000A / 1250A

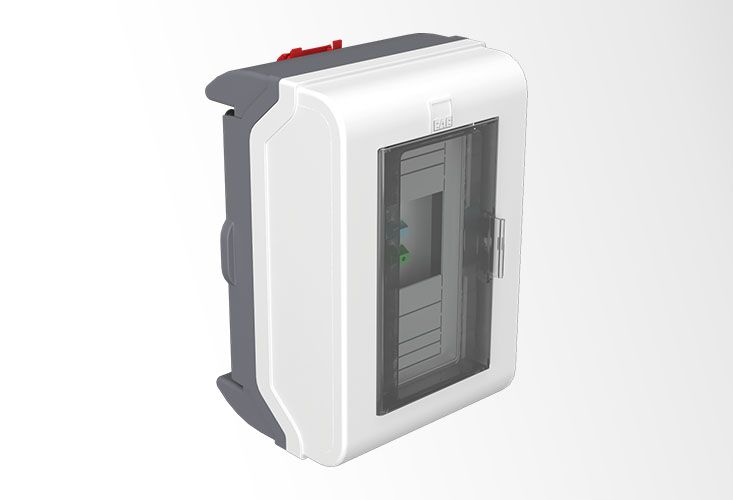

- With 32/40/63/80A Plastic Tap-off Boxes
- With 160/250/400A Sheet Metal Tap-Off Boxes
- Three phase tap off boxes with DIN mounted MCB up to 40A or 80A (empty or fuse included)
- Tap off boxes with SYK switch fuse up to 160A, 250A and 400A (excluding fuses)
- Tap off boxes with MCCB (moulted case circuit breaker) with current ratings up to 160A, 250A and 400A
