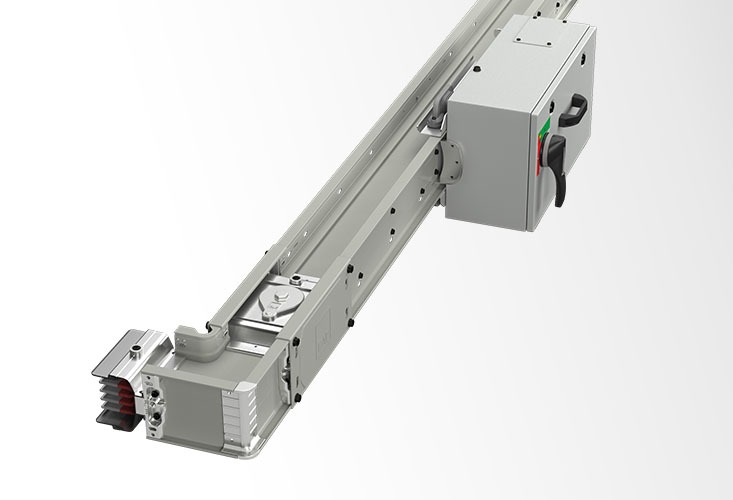

E-Line KX Busbar

Busbar System (400A – 6300A)
E-Line KX Series Compact Busbar Systems are used in horizontal and vertical energy distribution and transmission in Bolt-on (supply from the junctures) and Plug-in (from window points on the busbar housing and the junctures) types. In addition, they can be utilized at segments of factories and buildings where electrical outlets are not required for transmission purposes only. With its special design,a minimum voltage drop occurs.

Catalogs

General Information

Housing

Extruded aluminium, RAL7038-Electrostatic painted

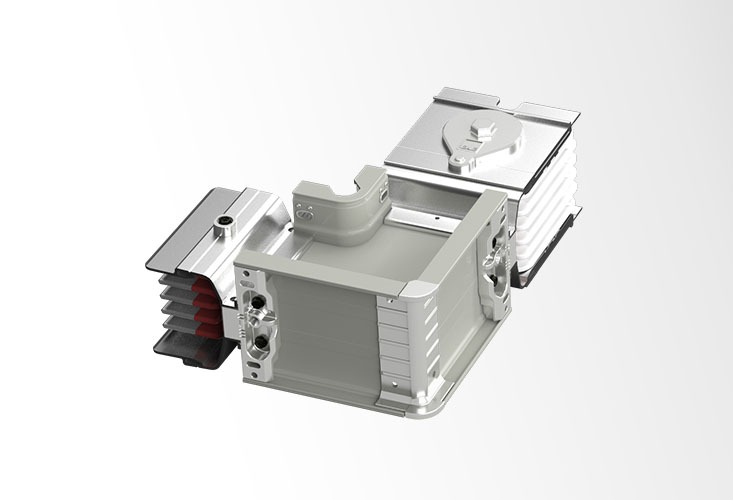

Conductors

Conductors are tin plated at the joint points.

Insulations

Insulated with "B class" polyester film and epoxy coated on conductors

Tap-off Boxes

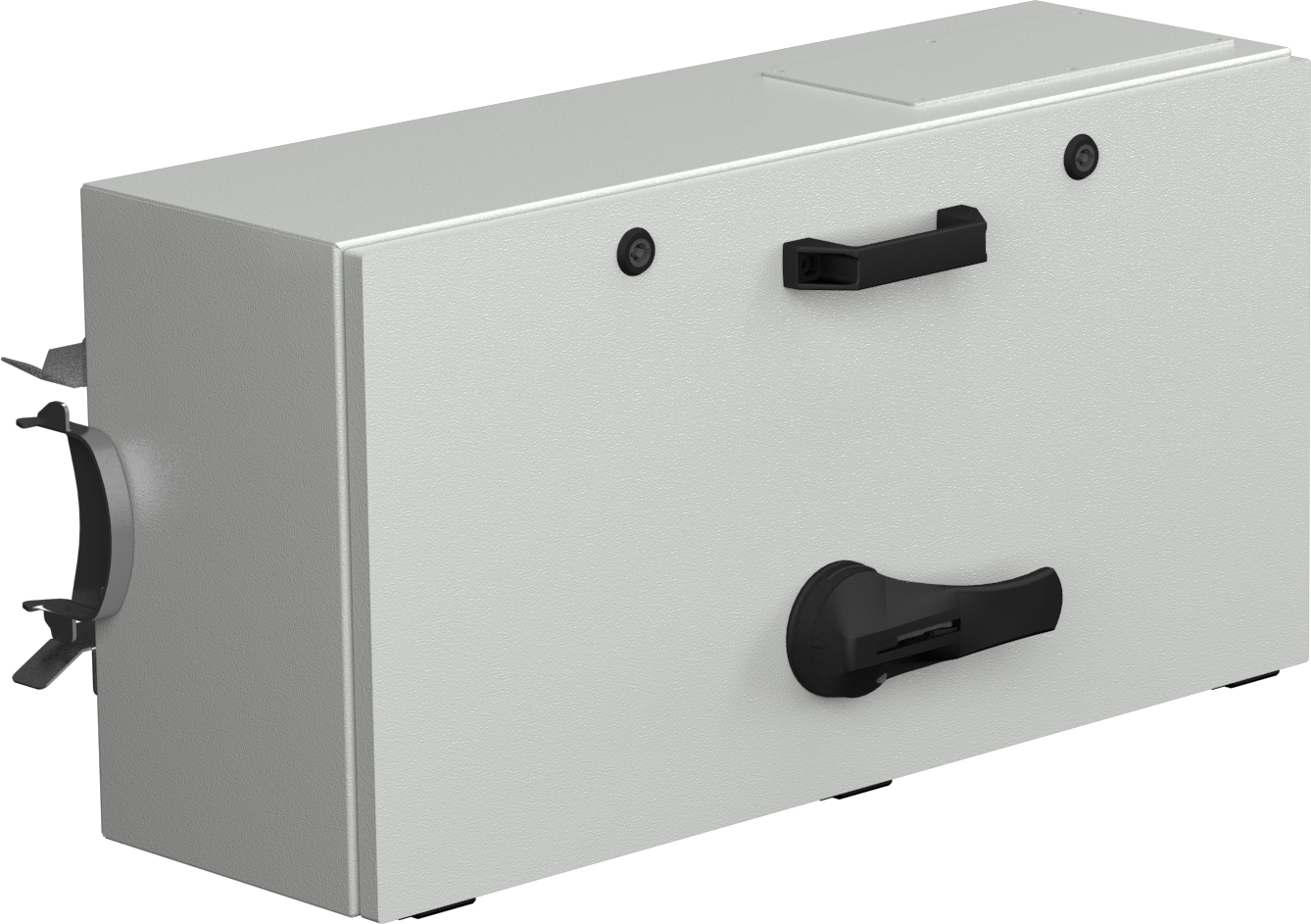

KXB Tap-off Boxes - From Joint

160 / 250 / 400 / 630 / 800 and 1000A bolt-on type busbar tap off boxes (Standard SYK switch or suitable for empty or including MCCB).

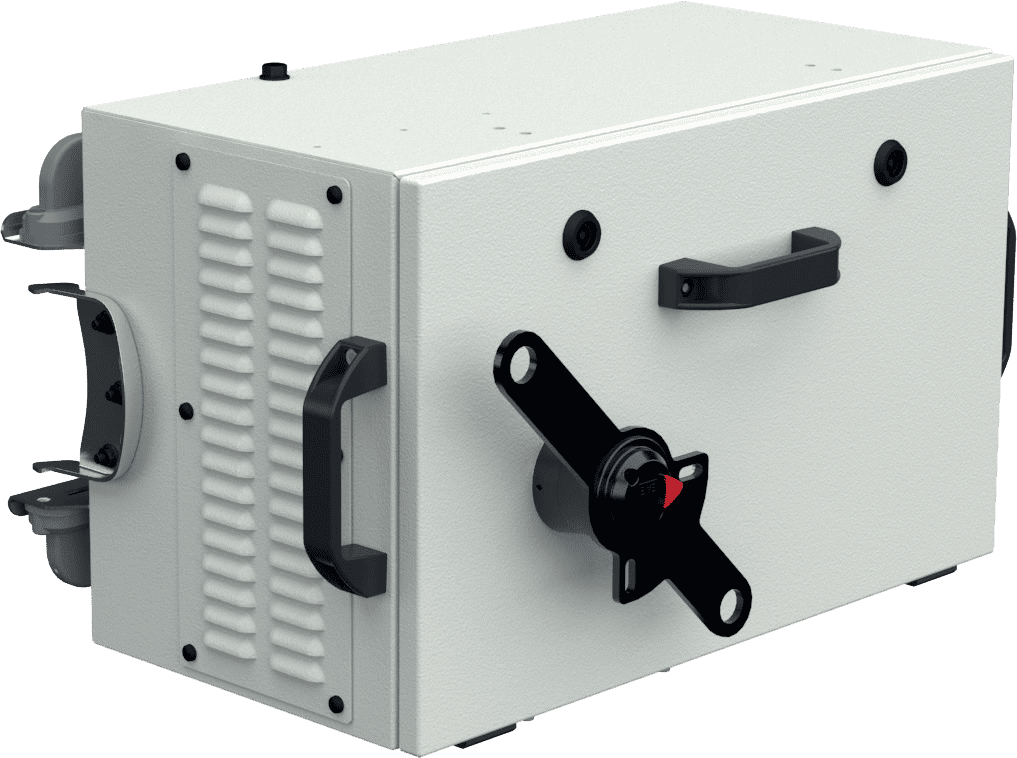

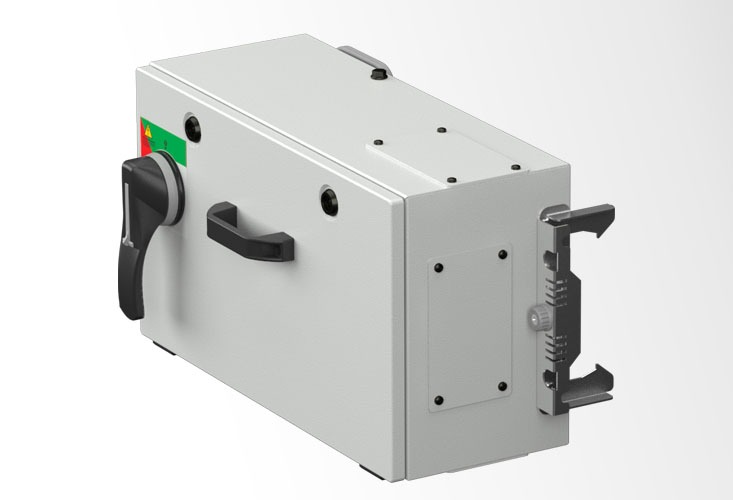

KXP Tap-off Boxes - Plug-in Point

160A, 250A, 400A and 630A plug-in-on type busbar tap off boxes (Standard SYK switch or suitable for empty or including MCCB).

Applications

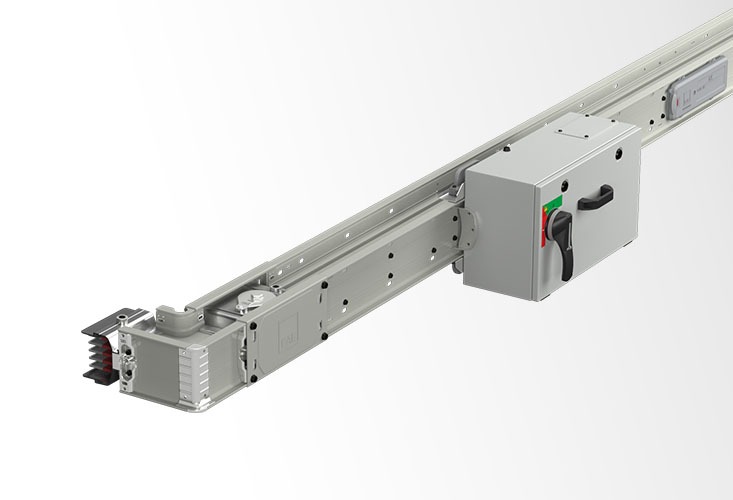

Horizontal Applications

Power Busbar System is a modular, electrical transmission and distribution system created by insulating the current carrier, which consists of Aluminium or Copper busbar conductors positioned in an enclosed body. The busbar system is used to distribute electrical current to a point along the route within the facility, starting from a point such as a transformer, generator, or panel, as well as to distribute electrical current to where the power is predominantly consumed in the facility by receiving electrical current from receiving points where tap-off boxes are installed.

Vertical Applications

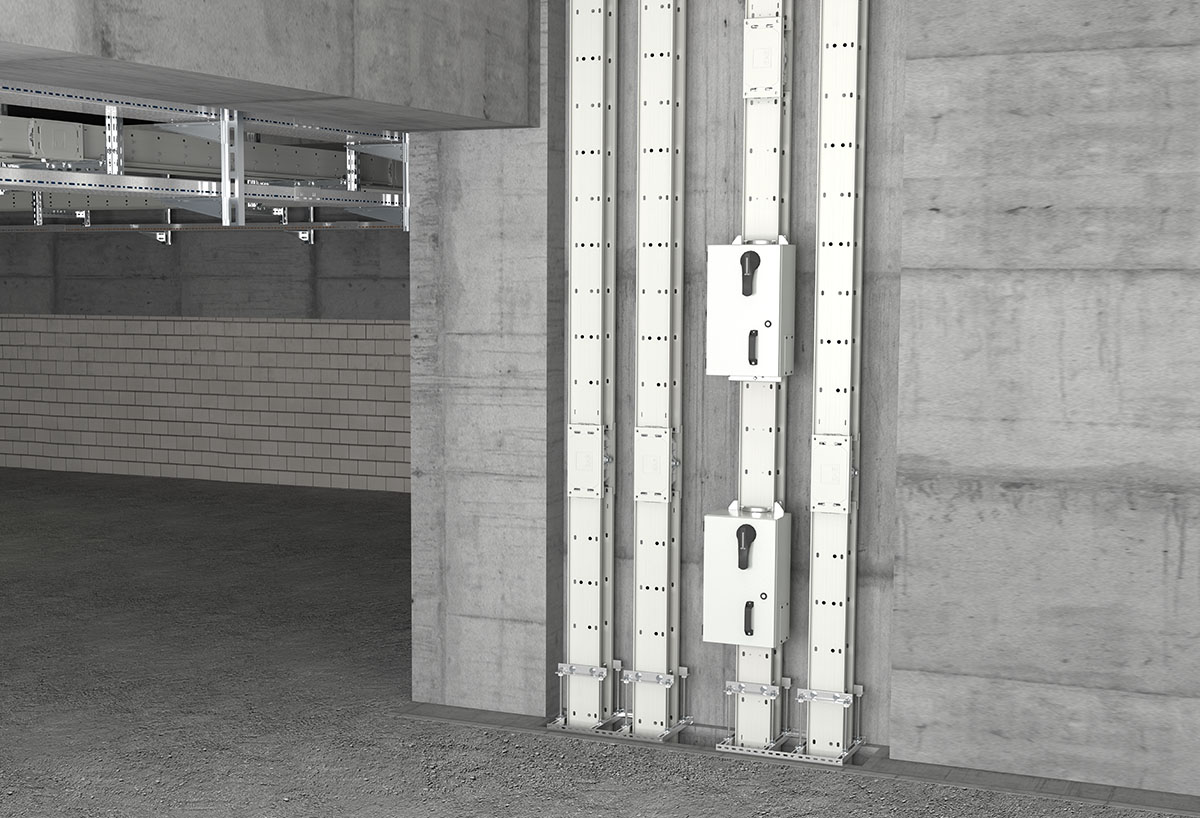

Installed vertically, the same systems can be used for rising-mains applications, with tap-offs feeding individual floors. Certified fire barriers are available at points where the busbar passes through a floor slab. Protection devices such as fuses, switch fuses, or circuit breakers are located along the busbar run, reducing the need for large distribution boards and the large quantities of distribution cables running to and from installed equipment.

Advantages of E-Line KX Busbar
  • High short circuit resistance due to compact construction
  • Less voltage drop in comparison to cable systems
  • Special alloy metal enclosure provides higher mechanical strength and causes less electromagnetic interference.
  • Better cooling capability
  • High resistance to fire
  • Seismic resistance
  • Protection Degree (IP55 standard and IP67 optional)
  • Requires less space in comparison to cable systems
  • Provides lower voltage drop compared to cable systems
  • Offers fast, easy, and secure Busbar installation thanks to tightening the one bolt joint.
E-Line KX Busbar Areas of Use
  • Production areas in factories
  • Textile factories
  • Iron-steel and Industrial glass factories
  • Automotive and automotive sub-industries
  • Malls
  • Exhibition areas
  • High rise buildings
  • Hotels
  • Hospitals
  • Business Centres
  • Data Centers
  • Oil & Gas Factories

Technical Information

Conductor Configuration

Aluminium or Copper Conductor:

  • 3 Conductor (L1/L2/L3/PE Housing)
  • 4 Conductor (L1/L2/L3/N/PE Housing)
  • 4 ½ Conductor (L1/L2/L3/N/½ PE/ PE Housing)
  • 4 ½ Conductor (L1/L2/L3/N/½ CPE/ PE Housing) – Clean Earth
  • 5 Conductor (L1/L2/L3/N/PE/ PE Housing)
  • 5 Conductor (L1/L2/L3/N/CPE/ PE Housing) – Clean Earth

Conductor Material and Rated Currents

KX Series Busbar

Aluminium Conductor:

400 / 500 / 630 / 800 / 1000 / 1250 / 1350 / 1600 / 1700/ 2000 / 2500 / 3200 / 4000 / 5000 / 6000A

Copper Conductor:
550 / 650 / 800 / 1000 / 1250 / 1350 / 1600 / 2000 / 2500 / 3300 / 3600 / 4000 / 5000 / 6300A

KX-II Series Busbar

Aluminium Conductor:
630 / 800 / 1000 / 1250 / 1600 / 2000 / 2350 / 2500 / 3000 / 3300 / 4000 / 5000 / 6300A

Copper Conductor:
650 / 800 / 1000 / 1250 / 1350 / 1600 / 2000 / 2250 / 2500 / 2750 / 3000 / 3300 / 3600 / 4000 / 5000 / 6300A
