Product Usage Specifications

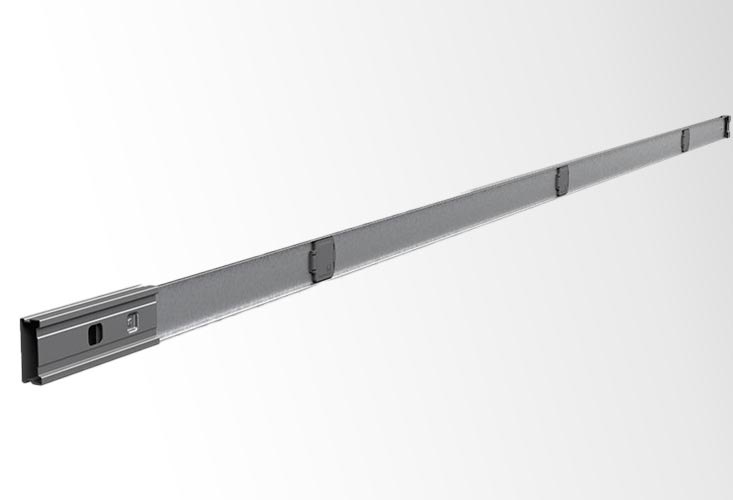

E-Line KY-S Busbar Trunking

It is used for provide electrical energy to single circuit lighting circuits and emergency lighting circuits with machines that requires low-power at factories, offices and autoparks.

For a single housing, it has 2,3,4,5 and 6 conductors with the oppurtunity to use as single and three phase.

E-Line KY-S DALI

It is used for provide electrical energy to single circuit lighting circuits and emergency lighting circuits with machines that requires low-power at factories, offices and autoparks.

For a single housing, it has 2,3,4,5 and 6 conductors with the oppurtunity to use as single and three phase.

KY-S Busbar Advantages and Features
  • 40A-63A, current-rated copper conductors.
  • Inside of a busbar housing, different number of conductor options up to 6 on a side.
  • If requested, RAL 7038 electrostatic oven-dried busbar housing on the galvanized sheet.
  • Standard 3m long Busbar includes three one-sided output windows; the 1m long Busbar includes one one-sided output window.
  • Slider type joint cap at joint points on the busbar can ease montage process without a need of screw or any hand tool.
  • It is coated fully with non-flame propagating isolation material on tin-plated copper conductors.
  • Has a structure to minimize current resistance at joint points and blocks overheating at contact points with its silver plated spring contacts.
  • Tap-off plugs that have different colors depending on phases with a special lock mechanism.
  • Tap-off plugs and boxes are designed to prevent misuse and electric shock by different addressing structures.
  • Different colors have been used on tap-off plugs and boxes, which are located on the cap, housing, and cable entry point connectors to make it clear to see the phase, function, and features of it.
  • It is compatible to use in all inside building ceilings, walls, and column applications with flexible turn modules and its attachments.
  • It has a clean earth (CPE) option.
  • IP55 protection class.
Usage Areas
  • Small businesses
  • Local production areas
  • Workshops
  • Textile Facilities
  • Automotive facilities
  • Automotive sub-industries
  • Small-sized industry facilities
  • Malls
  • Data Centres
  • Supermarkets
