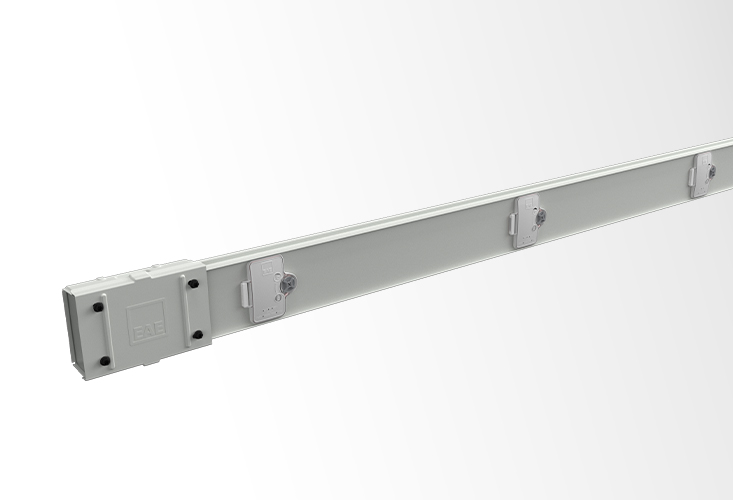

E-Line MK Busbar
The small power range Busbar Systems of E-Line MK series provide flexible and cost-effective solutions for the transmission and distribution of electricity in small-sized enterprises , workshops and industrial facilities.
The MK Busbar range offers cost effective solutions to the requirement for different amounts of energy through the range of plastic tap-off boxes. They are designed to provide energy up to 250A.
Catalogs
Housing
Sheet metal (RAL 7038 epoxy polyester electrostatic powder coated)
Conductors
Full-length tin-plated Aluminium or copper conductor
Insulations
Plastic protection at certain distances between air segregated conductors
- IP55 protection class
- Aluminum or copper conductor options
- Conductors are fully tin plated
- 4 or 5 conductors
- Plug-in tap off outlets at every 60 cm on both sides as standard
- Clean Earth option
- RAL 7038 painted steel enclosure
- E-Line Optional conductor can be configured in the E-Line MK Busbar system.

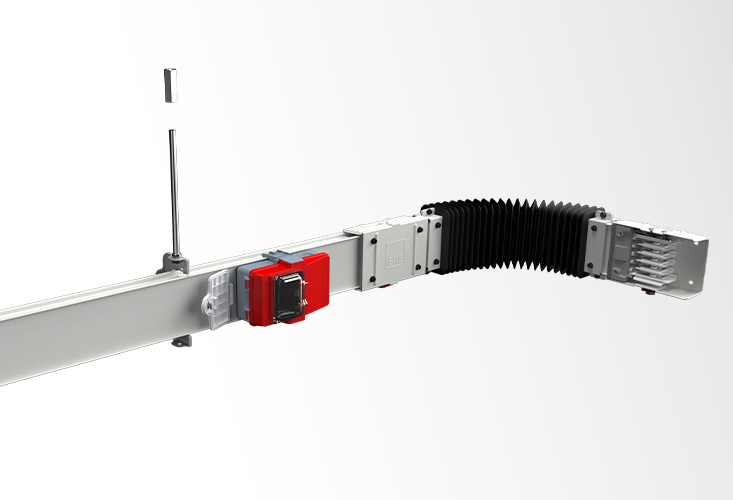

- Vertical, horizontal elbow and expansion modules are offered in a single module. Horizontal or vertical elbows at the desired angles can be carried out easily. In addition, it can be used safely in building dilatations thanks to its flexibility in every direction.
- The possibility of current supply from a total of 10 points on both sides of the busbar system is offered as a standard.
- Safety is ensured so not to allow finger contact when the busbar IP covers are open or the tap off boxes are in the off position and the covers are open (IP class of the system is 2X).
- Small enterprises
- Local production areas in factories
- Workshops
- Textile facilities
- Automotive facilities
- Automotive sub-industries
- Small industrial facilities
- Malls
- Data Centres
- Large Markets
Technical Information
Conductor Configuration
- 4 Conductor (L1/L2/L3/N/ PE Housing)
- 5 Conductor (L1/L2/L3/N/PE/ PE Housing)
- 5 Conductor (L1/L2/L3/N/CPE/ PE Housing) – Clean Earth
Conductor Material and Rated Currents
Aluminium Conductor:
100A / 160A / 250A
Copper Conductor:
160A / 225A
- Three phase tap-off boxes with DIN mounted fuse holders (10×38 mm) up to 16A, 40A or 80A (empty or fuse included)
- Three phase output boxes with 63A D02 plug fuse (empty or fuse included)

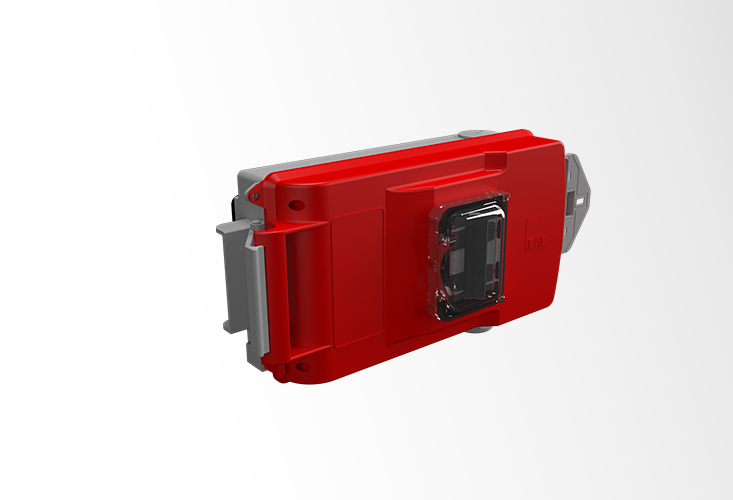

- Tap off boxes with MCB (miniature circuit breaker) rated up to 16A (empty or including the circuit breaker)
- 80A special Design Data Centre Tap-off boxes
- The body of the busbar tap off boxes is made of flame-proof and halogen-free plastic materials.
- It is possible to receive current up to 80A with tap off boxes.
- 16-80A busbar tap off boxes have an interlocking mechanism that prevents the cover from being opened without cutting the power off. The busbar tap off box is easily and safely mounted without requiring any further components.
- Opportunity to receive energy with 80A Aluminium Tap off Boxes
